majorxlr8n

Tint Tiger Carb

Recommended Posts

I wish I had rebuilt my carb while the old O&R forum was available with that FANTASTIC tutorial...  :(



I finally had a chance to get back to my Tiny Tiger generator. I disassembled the carb. I remember reading about a ball that sat under the diaphragm lever. Now, when I blow thru the inlet hose, there is constant air flow whether the arm is at rest or depressed. That doesn't sound right.



Also, should the correct re-assembly be: top cover, diaphragm, disk? it looks like the metal disk sits directly on the lever on the "dished" side.



The carb to engine gasket has a small rubber check valve as part of a gasket. it is not seated. should that be replaced?



sorry for all the questions but I greatly appreciate the help/guidance!

Marty

Edited by majorxlr8n

Share this post


Link to post
Share on other sites

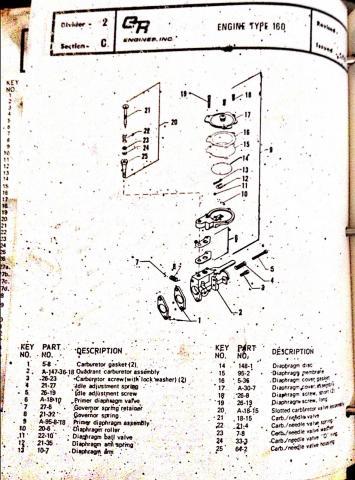

Yes, the disc sits directly on the arm. The clear check valve gasket sits against the diaphragm body so it valves the little hole going to the carb body. Here's a carb drawing showing all the parts.

The little bearing ball is a must have so check your carb to make sure it is still in there if you think it might be missing.

No worries on ANY questions, that's why we're here!


Share this post


Link to post
Share on other sites

ok, the ball must had gotten dislodged. I got lucky - it was still under the lever but not in place. I was able to get it seated by tilting the base around and lightly moving the lever arm until it fell into place! WHEW!!



now to find the new diaphragms - they got misplaced  :angry:



I'm SOOOOOOO close to getting this O&R running!!



thanks again!
Marty

Share this post


Link to post
Share on other sites

SUCCESS!!!



http://vid17.photobucket.com/albums/b81/kingmags/IMG_0509%201_zpswy18cd11.mp4



I cannot thank you folks enough! the fishing line trick to install the lever arm retainer in the carb worked well! it took a few tries but I finally got it all together. I had to set the mixture needle about 3/4 turn out from the seated position.



it took awhile to get back to this project but it was worth it!



Again, MUCH THANKS!!!
Marty

Edited by majorxlr8n

Share this post


Link to post
Share on other sites
