Oldest Tool(s) in your Toolbox

[Anglo Traction 1,016]

Thought I'd start this Topic, as I wonder just how many of us have the old, maybe inherited Tool that you know is old and has been used regularly for as long as you can remember. It would be interesting to see them.



This is not my oldest one, but I've managed to find out a lot of info that confirms it's age, as well as adding to the Archived information. Considering it is a simple common type Tool, I'm surprised there is so much info.



I give you  the humble--     Adjustable Bicycle Wrench (Spanner) Made in U.S.A, as so many of my old tools were.







I've established it can only have been produced before 1911, as the Patent Records confirm it and the Company changed the Maker/Identifier Stamp in 1910, and the Model E only shows the later version Stamps in the records.

Mine shows Model E, but has the older Stamp indentifiers, so the Model E was made before 1911.

Here's a research site I used trhat verifies it -

http://home.comcast.net/~alloy-artifacts/billings-spencer-company.html#billings-adj-early



Yes , it's in a sad state and a bit worn, but still works.   So what do you have in the old Tool Box?.



[neil 524]

I rememder having something like that , infact the one i did have was a massey fergusson one .

I will go and have a rummadge round the shed to see if i can find it .

[meadowfield 1,900]

currently I can only imagine my 1953 ML7 lathe being the oldest thing

[Ian 2,417]

Not quite a "in the tool box" tool as it's too big, I have a vice that was made in 1914 that I still use.. Must get a photo!

[amcrules00 24]

This early '58 RJ is the oldest one I have that left the factory with a toolbox...

but I must admit, I am partial to the looks better without 'em fitted up though.

[paul 64]

I have got a old one that doesn't quite fit in the tool box but very useful . My Dad!

[amcrules00 24]

LOL!

Lot's of age showing on that ol' tool?

[Stormin 4,458]

I've got tools that belong to my father, one of his brothers and their father. There's a couple of those adjustable wrenches. I carry one in the tool bag on my bike.

[simar kid 22]

you all have got me wondering what I have,i know that in one of my tool boxes I have a mole trap and a gin trap,but they wont count,must have a look.the mole trap was always set in the lid section of the box and the gin trap was set between the castors on the lowest cupboard. this was to catch other mechanics borrowing or stealing my tools

Edited February 3, 2014 by simar kid

[paul 64]

I was given a load of old taps and dies yesterday (one minute I didn't have any now I have about 200). I came across these but don't know how to use them, I think there must be a special handle for them, they are numbered in order 1-4. they are American according to the makers stamp

[meadowfield 1,900]

Looks like they need a special holder too

[simar kid 22]

yes paul the 1 to 4 is the order of threading from start to finish and the other piece which holds the section is tubular with cut outs for  your thread cutters

[paul 64]

Thanks for that, I will have to see if I can find the handle, it will be about somewhere in the mounds of disused tools.

that's a nice pic of the lab/ retriever mines enough problems without wings

[Anglo Traction 1,016]

I believe you have there, a set or collection of 'Thread Chasers'.

They are used to finish a Thread that has been cut using a Lathe.

The basic Cutting Tool use to cut the initial Thread Form in the Lathe does not always have the correct shape to produce the 'Crest' or 'Valley' of the thread form, so they used those 'Chasers' to clean them up and set the profile.

The 'Holder' that they fit into can either be a 'Hand' operated Carrier like a long Handle of a Wood Turning Chisel  or a Floating type Tool Holder that is fitted to the Lathe.



Edit :- Paul , were they made by Starret by any chance?.

Regards

[C-101plowerpower 548]

i think they fit in something like this





Koen

[Anglo Traction 1,016]

Not quite Koen, that is a Die Holder or Die Nut Runner.

Thread Chasers are like Combs that fit into a Holder. If this link works, there is an example amongst the pictures-

https://www.google.co.uk/search?q=thread+chaser+DIE+HOLDER&tbm=isch&imgil=0JQb6EeH7pRjbM%253A%253Bhttps%253A%252F%252Fencrypted-tbn3.gstatic.com%252Fimages%253Fq%253Dtbn%253AANd9GcQUsAxUJWsnjRjbiw-kzCZdczC1i2361iczuhlJQCqGzWyJaNWCDg%253B500%253B500%253BIuw-7sDmPJXhcM%253Bhttp%25253A%25252F%25252Fwww.tracytools.com%25252Fthread-chasers2&source=iu&usg=__YCBVrfZDr2XOqt9ij_MbVZeI0hw%3D&sa=X&ei=v-jwUvzXMOGL7AbxxoCgDQ&ved=0CFIQ9QEwAw&biw=1188&bih=559#facrc=_&imgrc=0JQb6EeH7pRjbM%253A%3BIuw-7sDmPJXhcM%3Bhttp%253A%252F%252Fwww.tracytools.com%252Fimage%252Fcache%252Fdata%252FNew%252520photos%252520taps%252520dies%252520072-500x500.jpg%3Bhttp%253A%252F%252Fwww.tracytools.com%252Fthread-chasers2%3B500%3B500

[Stormin 4,458]

I had a set of those dies from my late uncles garage. Sold them at an auto jumble a couple of years back. No holder though. Still got some Whitworth and B.S.F. dies and taps.

Edited February 4, 2014 by Stormin

[paul 64]

Hi all

I will have a look at the makers stamp somewhen, I have loads of the above mentioned taps and dies kicking about.

If anybody would like the items pictured  you could have them as not much use to me.

Paul

[wheeledhorseman 19]

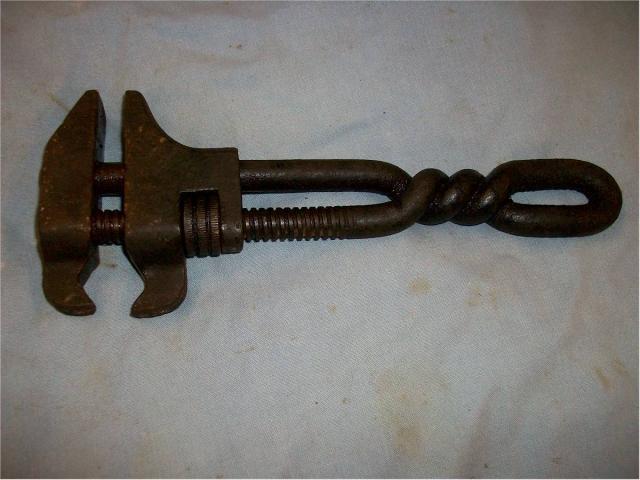

I don't go out of my way to collect old tools but over the years a few have got into my toolbox for one reason or another so here's one for you (click to enlarge)....





The method of construction fascinates me, obviously an adjustable wrench and pretty old but what is its origin? I can't help thinking that maybe it was part of a set of tools suppied with something mechanical and somewhere someone is desparately looking for one of these.



Any ideas guys?



Andy

[Anglo Traction 1,016]

I'm inclined to agree Andy, look's very much like part of a Kit. Can't find any similar in initial Patent searches.

Very good economic, robust design with the ACME Thread.

The Square Grip Jaws could be for the square heads on Plumbing & Pipe Fittings?.

[Stormin 4,458]

And the other jaws nuts?

[C-101plowerpower 548]

i think the oldest tool in my toolbox is the whole thing, J.H. Williams Superrench 1001 toolbox with tools





Koen

[Ian 2,417]

Not my oldest tools, but still quite old.







No idea on the make, but something tells me it was not made in the UK







A King Dick sporting a "war finish" as it says.





[Hillsider 16]

The dies shown in post 10 are from the a ridgid (or similar) thread cutting machine. They fit into a die head in numerical order as has been suggested and can normally be adjusted for depth of cut and released by rotating one half of the die holder against the fixed half.

http://www.amazon.com/Diehead-RIDGID-97065-Automatic-Oiler/dp/B0015RWYPQ

[neil 524]

Wow Hillsider, you know your stuff , I wouldn't have a clue what they were for.
