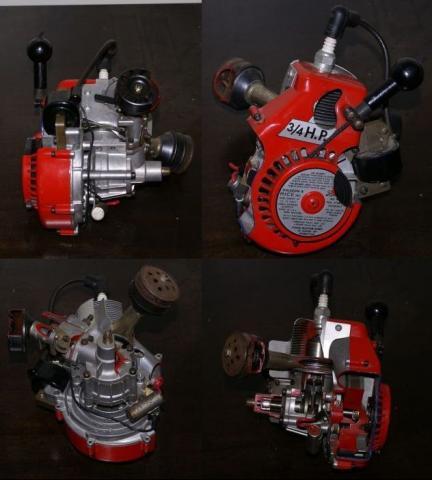

Wallfish 698 #1 Posted November 22, 2014 Interesting cut away to view inside an O&R engine 1 pmackellow reacted to this Share this post Link to post Share on other sites

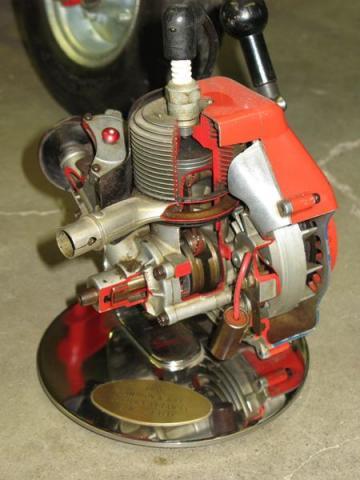

factory 487 #2 Posted November 22, 2014 Another cutaway O&R engine, this isn't mine, it was on ebay a few years ago. I wonder how many they made. David 2 diggerjames and pmackellow reacted to this Share this post Link to post Share on other sites
neil 524 #3 Posted November 23, 2014 Amazing miniature engineering Share this post Link to post Share on other sites
Wallfish 698 #4 Posted November 23, 2014 The one I posted is not mine either, just a web pic but definitely thought about doing one of these myself. Shouldn't be too hard using a band saw and a Dremel cutoff tool. Share this post Link to post Share on other sites
pmackellow 2,738 #5 Posted November 23, 2014 That's cool, I bet they make good talking points Share this post Link to post Share on other sites
CNew 404 #6 Posted February 25, 2019 This would be a neat find, an O&R engine cut-away display. https://photobucket.com/gallery/user/Hodakaguy/media/bWVkaWFJZDo5OTcxOTI0/?ref= Share this post Link to post Share on other sites
factory 487 #7 Posted February 25, 2019 (edited) I can just about make out that it says 1970's on the brass plaque, which is wrong as the engine actually appears to be a 1960's engine from the style of starter fitted, the black cylinder cooling shield & no extra fins on the crankcase. I've been keeping all my damaged engine parts for possible reuse to make a similar cut-away engine, but I wouldn't cut-away the hard to find parts such as the air filter & muffler. David Edited March 12, 2019 by factory Removed redundant link following merging the two threads. Share this post Link to post Share on other sites
CNew 404 #8 Posted February 25, 2019 David, That would be really cool. I don’t have enough scrap parts or engines to do that yet but a cut-away engine display would be a fun project. Share this post Link to post Share on other sites

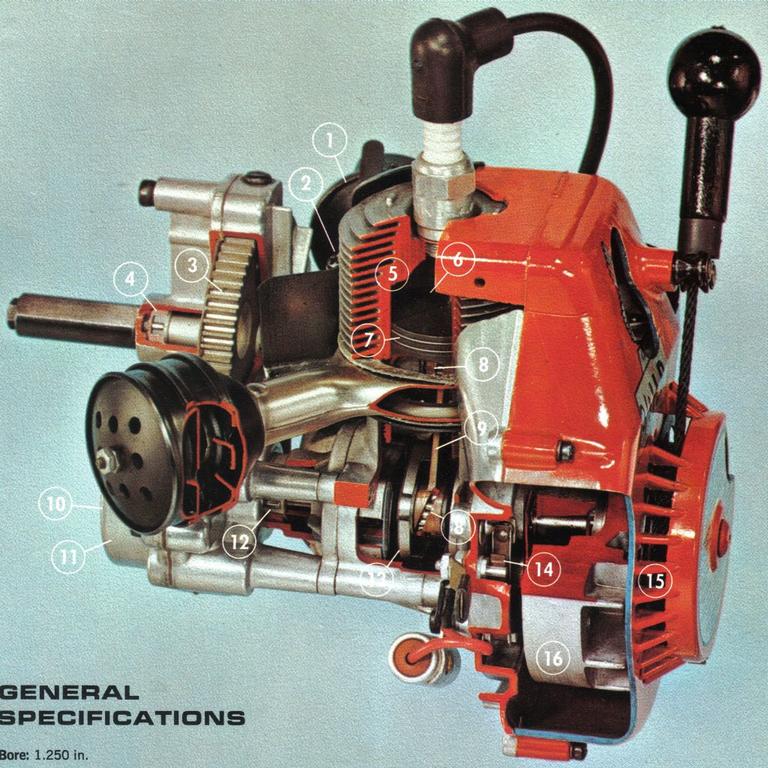

factory 487 #9 Posted March 8, 2019 This is from one of the brochures I have, almost exactly the same apart from having a cutaway gearbox too. David 1 CNew reacted to this Share this post Link to post Share on other sites
factory 487 #10 Posted March 12, 2019 I have merged the two O&R Cut-away Engine threads & edited the title to add the engine type (3/4HP). David 1 CNew reacted to this Share this post Link to post Share on other sites
CNew 404 #11 Posted March 18, 2020 On 11/23/2014 at 10:41 AM, Wallfish said: The one I posted is not mine either, just a web pic but definitely thought about doing one of these myself. Shouldn't be too hard using a band saw and a Dremel cutoff tool. Great idea, maybe I’ll look into this at some point. I can probably find a gear box from an old chainsaw or something and use a Dremel cutoff tool to replicate it or I could use my O&R cutoff saw.... J/K Share this post Link to post Share on other sites
Wallfish 698 #12 Posted March 19, 2020 23 hours ago, CNew said: or I could use my O&R cutoff saw.... J/K That would make an interesting video. 2 factory and CNew reacted to this Share this post Link to post Share on other sites
