Picked up this unusual machine this morning. Have got the missing bits in a box. Fitted with a 2 stroke JAP 80 engine that is all ther

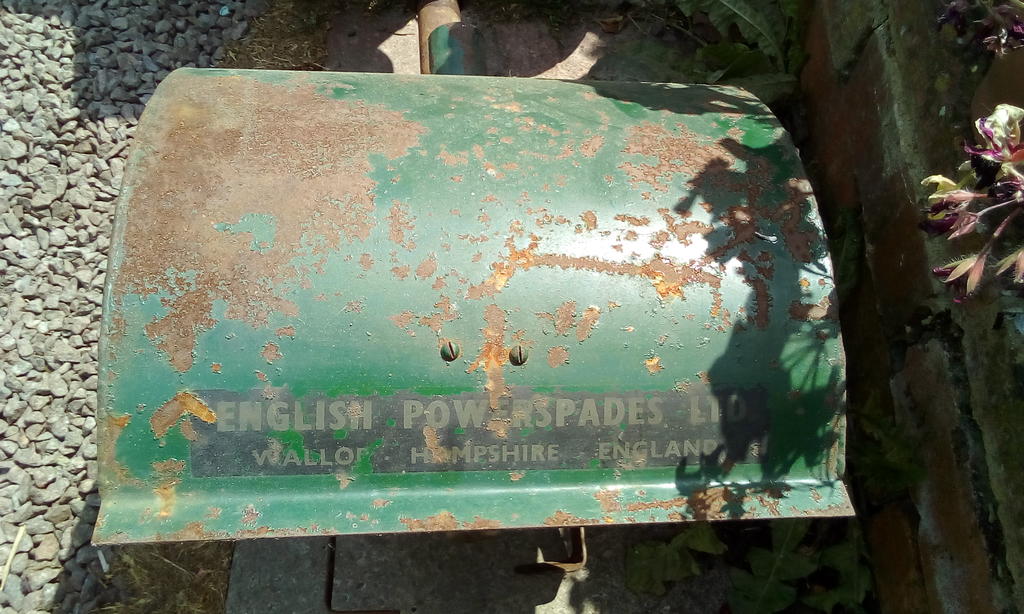

IMG_20180714_122026.jpg.13da53a122c74e28f93c3f91a8837ecb.jpgIMG_20180714_122026.jpg.13da53a122c74e28f93c3f91a8837ecb.jpgIMG_20180714_122026.jpg.13da53a122c74e28f93c3f91a8837ecb.jpgIMG_20180714_122026.jpg.13da53a122c74e28f93c3f91a8837ecb.jpge but has no spark (usual suspects no doubt). Made by English Powerspades Ltd who appear to have ceased trading in 1968. Looks quite well made & is certainly heavier than the Gardenmaster 85 that came with it.



Made a bit of a mess of this (it skills failed again) more photos



Edited by Fix'em all

Share this post


Link to post
Share on other sites

Finally got the little JAP 80 engine running today but removing the flywheel was hell's own job. They don't have a keyway on the shaft so the shaft and flywheel are tapered and once on they want to stay on. I had to drill into the ally flywheel right next to the shaft to release it's clamp on the shaft. Luckily I drilled into the shaft a bit. I used this to re-align the  flywheel, as there is no way of knowing which position is correct without a keyway.

Share this post


Link to post
Share on other sites
2 hours ago, Fix'em all said:

Finally got the little JAP 80 engine running today but removing the flywheel was hell's own job. They don't have a keyway on the shaft so the shaft and flywheel are tapered and once on they want to stay on. I had to drill into the ally flywheel right next to the shaft to release it's clamp on the shaft. Luckily I drilled into the shaft a bit. I used this to re-align the  flywheel, as there is no way of knowing which position is correct without a keyway.

2

Not quite so, you can retime the ignition using the Before Top Dead Centre figure from the engine spec in relation to the points starting to open. I believe the setting for a JAP80 is 25degrees or 7/64" BTDC. Points gap 18thou and plug 25thou
