Ohlsson & Rice: Cut-away Engine

[CNew 404]

I’ve been hoping for a long time I would find one of these and after months of constant searching I finally hit gold.  Wish it had the cut-away gear box too but I’m thrilled just to have the engine. It needs a recoil spring and pull rope to complete it and of course a thorough cleaning. I’ll have to come up with a cool display stand as well.  It’ll look cool with the recent brochure that also shows this engine.



[JUST O&R 237]

Cool engine does it run ok or need a little work

[pmackellow 2,738]

Thats very nice, well done, good find !



[factory 487]

10 hours ago, JUST O&R said:

Cool engine does it run ok or need a little work



It won't start, compression is terrible, gas leaking everywhere......



21 hours ago, CNew said:

I’ve been hoping for a long time I would find one of these and after months of constant searching I finally hit gold.  Wish it had the cut-away gear box too but I’m thrilled just to have the engine. It needs a recoil spring and pull rope to complete it and of course a thorough cleaning.



Very nice engine @CNew, I still haven't got one & have been collecting O&R's for years, looks like all the starter parts are missing not just the spring & cord, needs a reel too.



Neither of the other two have a gearbox either, maybe it was a one-off for the brochure.



David

[CNew 404]

Yep, needs the reel but I have an extra so that’s covered.



I had forgotten about the other posting on here for the cutaway engine. That’s actually the one that got me spun up and hunting for one!



I just scrounged through some parts and found most of what I need to get the starter in display-ready condition.



[CNew 404]

5 hours ago, factory said:

Neither of the other two have a gearbox either, maybe it was a one-off for the brochure.



Apparently they made at least one...

https://digitaltmuseum.no/011024217695/motor

[factory 487]

Wow, that's doubled the amount of them we know of, the one in the Norwegian Technical Museum is a 0.85HP version with metal caged bearings, but the separate gearbox (on it's own) has the older plastic caged bearings, I suspect they couldn't use the newer wire caged bearings as they would fall out.



Clint, check that your starter has the groove for that retaining ring.



David

[factory 487]

@CNew Do these cut-away engines still have a serial number or is it just blank? Obviously no model number as that side has been cut-off.



David

[CNew 404]

4 hours ago, factory said:

Clint, check that your starter has the groove for that retaining ring.



Good eye David, this engine doesn’t have the groove for the retaining ring.

3 hours ago, factory said:

@CNew Do these cut-away engines still have a serial number or is it just blank? Obviously no model number as that side has been cut-off.



I couldn’t find any serial or model numbers anywhere on the engine.

[CNew 404]

Here’s the cut-away engine after a minimally invasive cleanup job and installation of a recoil starter reel, spring, rope and knob. I’m almost 100% sure I want to display it on this gas tank but I’m still contemplating it just a little bit. I will probably do a bit more thorough cleaning later. Still debating also making a cut-away gear box to go with it.  (I’ll fix the rope knot too, got excited to take photos before realizing I didn’t finish the knob)



[JUST O&R 237]

I like the tank. That will be a good stand or you would need to make bracket anyway .

[Fishnuts2 22]

Thanks for these pictures.  Pretty sure I'll never have one of these, but at least I can ogle and study the pictures!

[CNew 404]

Thanks, I’m very happy to have found this one - they definitely don’t seem to come up very often.

[factory 487]

On 3/24/2020 at 3:51 AM, CNew said:

Here’s the cut-away engine after a minimally invasive cleanup job and installation of a recoil starter reel, spring, rope and knob. I’m almost 100% sure I want to display it on this gas tank but I’m still contemplating it just a little bit. I will probably do a bit more thorough cleaning later.



I'm not sure about the tank as it hides some of the cut-away parts, plus there is nowhere for the condenser to attach.



On 3/24/2020 at 1:56 PM, CNew said:

they definitely don’t seem to come up very often.



Your not kidding, first one we've seen for a very long time.



David

[CNew 404]

5 hours ago, factory said:

I'm not sure about the tank as it hides some of the cut-away parts, plus there is nowhere for the condenser to attach.



Yep, that is my one hang-up as well. It doesn’t cover up visibility to the parts too badly but a little. If I do end up using this tank I’ll just attach the condenser to the recoil cover at the 9 or 10 o’clock position. I’ve seen several engines set up with the condenser attached at this location, like this Tiny Tiger.  I might just use the tank temporarily since it does make for a nice convenient way to display it and keep it from falling over or getting damaged. I can then work on making a nicer display with a custom bracket later.



[factory 487]

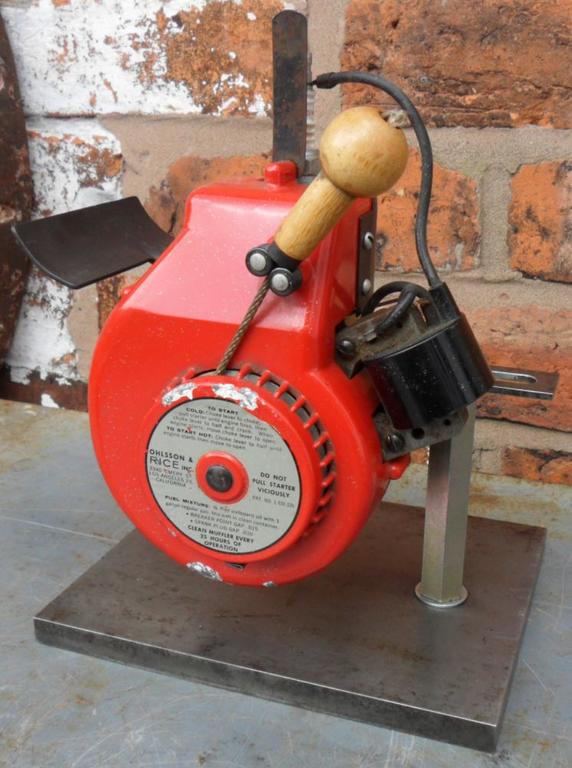

Maybe you could make something like this test stand I made a few years ago, it never actually got used for testing anything as it quickly turned into a permanent display stand for this engine, going to need to make another eventually.



By the way I noticed your sectioned engine is missing something, some filter foam for the air cleaner.

Also I had a thought overnight having remembered seeing a sectioned engine being slowly driven at a local engine show (many years ago), a slow low voltage DC motor (3-4 RPM) could be used for this.



David

[Webhead 95]

David, that looks like one of the earliest engines. Could it be?

[CNew 404]

Good ideas David. I’ve been contemplating some sort of display stand like that. Part of the challenge is the engine mount tab has been cut away from one side of the engine. I don’t really like the idea of suspending it with all the weight on one side without some sort of secondary bracket that makes contact with the bottom or some other part on the engine to give it some more stability.


my engine is currently stuck so I’ll have to take it all apart as some point to free up the piston if I wanted to demonstrate movement of al the parts.

[factory 487]

1 hour ago, Webhead said:

David, that looks like one of the earliest engines. Could it be?



Yes it is, I've been meaning to add a thread about it but never got round to it, should have time now.



50 minutes ago, CNew said:

I don’t really like the idea of suspending it with all the weight on one side without some sort of secondary bracket that makes contact with the bottom or some other part on the engine to give it some more stability.



It will be fine, the engine on that display stand is only attached on one side (some tools are too, such as one of my hedge trimmers) and it's been to engine shows on the stand.



That engine was also stuck when I got it, the oil in the bearings had turned to varnish.



David

[CNew 404]

Ok, that’s really good to know that it’s strong enough just mounted on one side!

[Wallfish 698]

[CNew 404]

Yep, this is a nice one. I kind of like the C-shaped bracket, it’s a nice clean touch.  I need Terry to work his magic for me...



I have a couple nice 3/8” base plates already laser cut, just need the bracket and to mount some nice rubber feet/pads, kind of like that model 227 I did a few months back.

[factory 487]

Laser cut!!! , I had to square up that thick off-cut of steel for my test/display stand by hand using a hacksaw & file.



David

[CNew 404]

I’ve done a lot of hacksaw work too and will have some yet to do. The laser cut bases were something I stumbled onto at a local metal supply shop when I was in MInnesota.

[CNew 404]

Started tinkering with an idea for a stand this afternoon. If I go this route I’ll need to cut the mount, drill and tap, add some small rubber feet to the base, etc. With this setup I could make it adjustable as well and the suspended height will also be ready for a cut-away gearbox some day.  I stuck an old engine on there to sort of get a visual. Of course when it’s mounted to the bar it’ll hand about 2” lower.
