What lathe have you got?

[S1g 579]

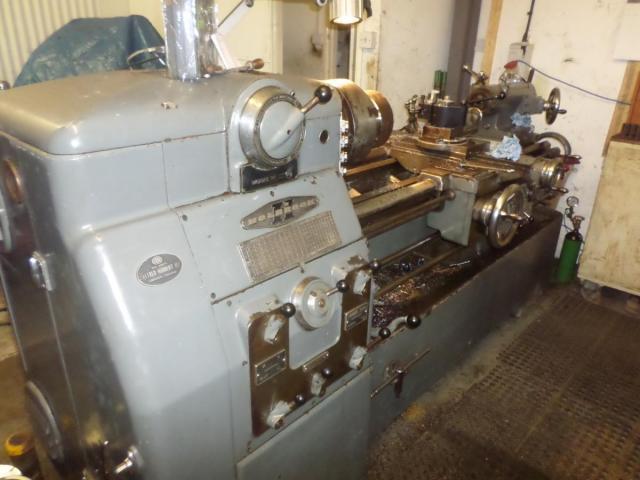

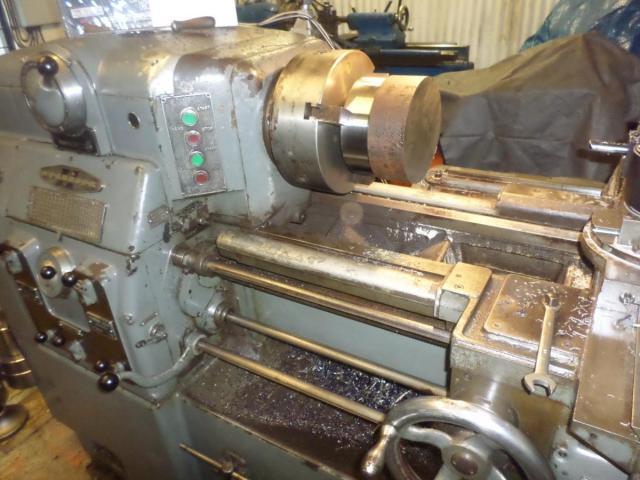

This lathe is in the back workshop, weighs the best part of 4tonnes on its own.

[S1g 579]

....

[nigel 1,877]

cor i would give my mrs right arm for one of those

[S1g 579]

I'm fairly sure it dates from the 1960's so not even run in yet. Apparently when the beds were cast they were then left outside for 3years to let all the stresses come out before being machined.

[Stormin 4,458]

That brings back memories of my apprenticeship. Proper lathe for proper turners.

[neil 524]

what a beauty , i would mind being let loose on that for an hour or two .

This is what this forum is all about , great machines like this one

[pmackellow 2,738]

We had one of those big Holbrooks (and several smaller Myfords) when I was at College way back in the 1980's, wonderful machine...

[norlett 32]

Makes my Myford 7 look like a toy

[Ian 2,417]

I have a Southbend Model S.. Not a big lathe by any means but it has proved so handy over the years.







In action making bearing blocks.







The finished products.



[Stormin 4,458]

This is mine. Not set up yet. It's a ZYTO.







[nigel 1,877]

that looks a nice bit of kit.

[Tom 215]

All very nice lathes! A lathe is definitely the next thing I'm go to add to my workshop..

Tom

[Ian 2,417]

This is mine. Not set up yet. It's a ZYTO.






Now that is a thing of beauty.. I love the rugged looks..   Nice lathe Norm.

[Anglo Traction 1,016]

This is mine. Not set up yet. It's a ZYTO.

They've been around for some time. Made by Tyzack of L.ondon (I used to work with the Grandson of the Founder).

Here's some info and story for them if your not already aware.

http://www.lathes.co.uk/zyto/

[Stormin 4,458]

Yes, it has the name S Tyzak and Sons Ltd along the front edge of the bed. Thanks for the link, Richard.



Mine looks to be like an early 1950's model.

Edited February 7, 2014 by Stormin

[Lauber1 51]

very nice lathe setup. I 'd like to get to the point of where I could have a mill and a lathe, but with all the other stuff I have in the shop, plus the fact that I have to give up 1/3 of my space to the wifes car, there just isn't any  room inside my 30x40' building for extras. I have a friend whos in the business of CNC equipment, so I have them make the things I don't have room for. Not really sure I could merit having any more big machinery as I wouldn't use it as much as I do, the forge, anvils, drill press's and blasting equipment already in there.  I am however long over due for a general clean out the shop job. I'm sure there are things that could go, that I've been saving for a project, or maybe just shouldn't have been saved in the first place. But its painful to discard old items sometimes, so I store way more items than I should.



As a case in point, I have a complete Franklin Helicopter engine here. Now I don't own a helicopter, probably wont get one any time soon, but its too good to get rid of, and besides, how many can say they have one? Sorry didn't mean to hijack the thread.

[Anglo Traction 1,016]

You have just got to find a use for that Chopper Engine Jeff !.



Apart from the Myford  (don't want to dupe my other Post/Thread here, I have a Tiny Plain Lathe with full accessories.

Use it for Bushings and Model Steam fittings etc . Did use it initially to machine the front Wheel Rim Castings for my Engine.

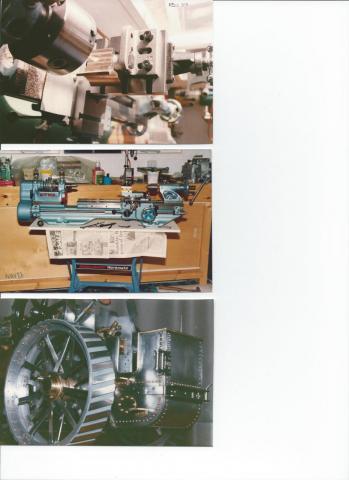

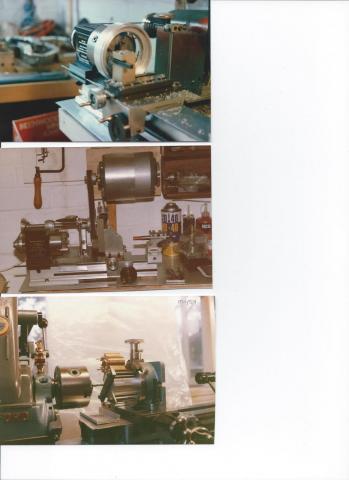

Rather untidy post , but here's a few old scanned photographs of the Micro Lathe and some other Myford machining shots :-

........sorry about the quality.

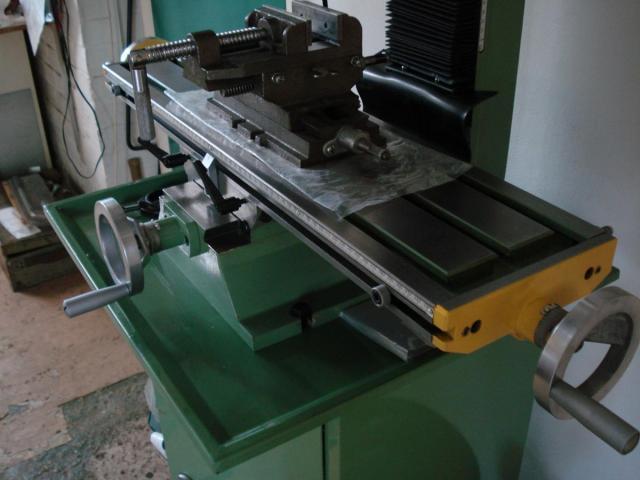

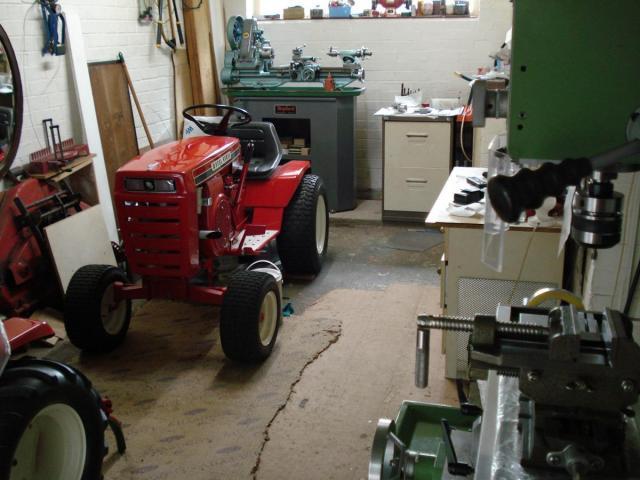

I added a Used Light Milling Machine to my little workshop last Autumn (right of pic) , well worth it :-





Reasonable size Table and will cope with my needs and Tools interchangeable with the Myford









[meadowfield 1,900]

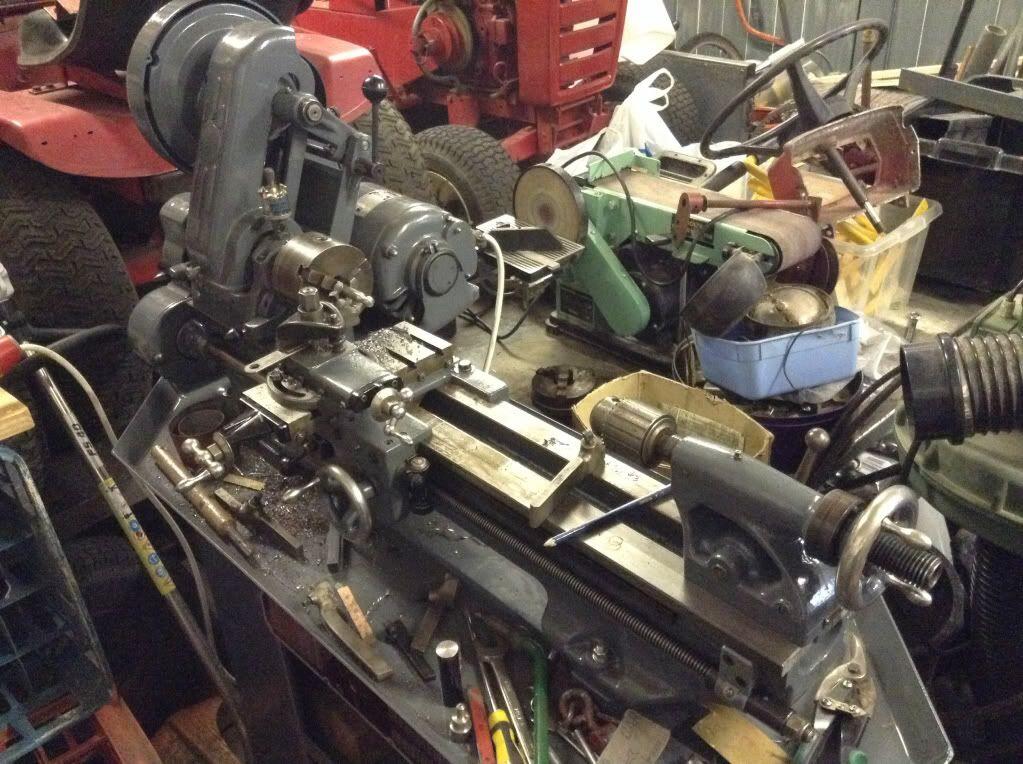

I've the same 1953 myford ML7 lathe as Richard, only with 3 phase and an inverter. I'm untidy though, so it's a mess

[Jim Beacon 0]

Several machines here, not all in working order (or even assembled in some cases, but they came at thee right price....). Lathes-wise, the one that gets used most often is a 3.5" Grayson from the 30's, there is a slow rebuild project of a SouthBend heavy 10, as well as a round bed Drummond, and a small un-named capstan tucked away on a shelf.

I also have a Denbigh H4 horizontal mill, which is about 80 years old, but very handy!

There is an assortment other machinery that get used on odd occasions (couple of pillar drills, power hacksaw, pantograph engraving machine).

[C-101plowerpower 548]

Several machines here, not all in working order (or even assembled in some cases, but they came at thee right price....). Lathes-wise, the one that gets used most often is a 3.5" Grayson from the 30's, there is a slow rebuild project of a SouthBend heavy 10, as well as a round bed Drummond, and a small un-named capstan tucked away on a shelf.

I also have a Denbigh H4 horizontal mill, which is about 80 years old, but very handy!

There is an assortment other machinery that get used on odd occasions (couple of pillar drills, power hacksaw, pantograph engraving machine).





Koen

[neil 524]

They've been around for some time. Made by Tyzack of L.ondon (I used to work with the Grandson of the Founder).

Here's some info and story for them if your not already aware.

http://www.lathes.co.uk/zyto/



Tyzack also used to make Bricklaying tools  as i still have a Bricklaying Trowel & pins made by them

[the showman 4,074]

I've got a small Warco 810, I'am not an engineer but its ok to play with on light stuff

[ranger 373]

I have a 1972 Myford super7 a vertical mill I assembled from a Chester Champion compound table with a Westbury column and head. The westbury compound table,all cast iron dovetails etc I may turn into a small surface grinder. Languishing in the garage is an Elliot 10m shaper unused for the last 10years or so but brilliant for generating flat surfaces. No pics at the moment because everything in a right mess and no time to clear up.

[sten 84]

I have a  Viceroy TDS 1/1 from around the mid 50's, doesn't get a lot of use and is half buried in the shed at the moment.

[nigel 1,877]

ive got a mate just round the corner that does my lathe work when needed. havent i ian
